This post seeks to distinguish between the multiple aspects and phases of networking projects. Network Architecture and Network Design are the phases of a networking project carried out first. Then comes the Project Implementation phase along with configurations by Network Engineers.

Some experts have included an Analysis phase as part of, or before, the Network Architecture phase. The concepts being that first an analysis needs to be done on the flows expected from the new network.

Before Network Architecture the Analysis phase consists of gathering the User Requirements, Application Requirements, Application Types, Performance Requirements, Bandwidth Requirements, Delay Requirements etc. After gathering these requirements a Customer Requirements Document (CRD) can be made consisting of all the expectations and requirements from the network. This document will assist with project management throughout the network life cycle and for sufficiently large projects its a good exercise.

Once the requirements are gathered a Flow Analysis can be done to identify the flows required from the network. Data Source and Data Sinks, Critical Flows and per Application flows etc. are analyzed as part of Flow Analysis exercise.

Once the requirements are known and flows are known this can lead to decisions regarding the Network Architecture. The Network Architecture term is generally used with the Network Design term as one but according to one definition it is distinguished from Network Design such that the Architecture consists of the technological architecture while the design consists of specific networking devices selected and vendors selected for the architecture to be implemented on ground. This means, for example, that the Network Architecture will deal with whether to use OSPF or ISIS and how to use them and the Network Design will cover which specific vendor router to use. They are closely linked.

Once the flows are known it can be discussed what the architecture can be. This will consist of primarily deciding the protocols, the addressing and the routing architecture which can be used to facilitate the required flows. Once it is decided which network technologies to use for the flows (such as OSPF, ISIS, MPLS, L2VPN, L3VPN, IPSec, BGP, Public Internet, VXLAN, EVPN, Ethernet etc) a diagram can be made of the architecture. Multiple iterations and permutation of the various architectures will come forward from the discussions over what the architecture could be to facilitate all the flows and provide a resilient network. For each of the protocols listed above, and any other to be used, the clogs available in each can be discussed in detail. It can be discussed and decided regarding how the combinations of multiple protocols will be used to meet all the flows and meet the requirements from the network. If there are cloud connectivity requirements it will be discussed how (which protocol) and where to connect to the cloud. Once an architecture is decided and protocols are selected and the tools within the protocols which are to be used are listed then they can be summed up in a document and in diagrams.

After this phase comes the Design decisions phase. This is close to the architecture phase but this is where the vendor of that OSPF router is selected. This is where the specific router is selected from the multiple router offerings available from the selected vendor. Device vendor selection and specific device selection is a task of its own and is a separate effort in networking projects.

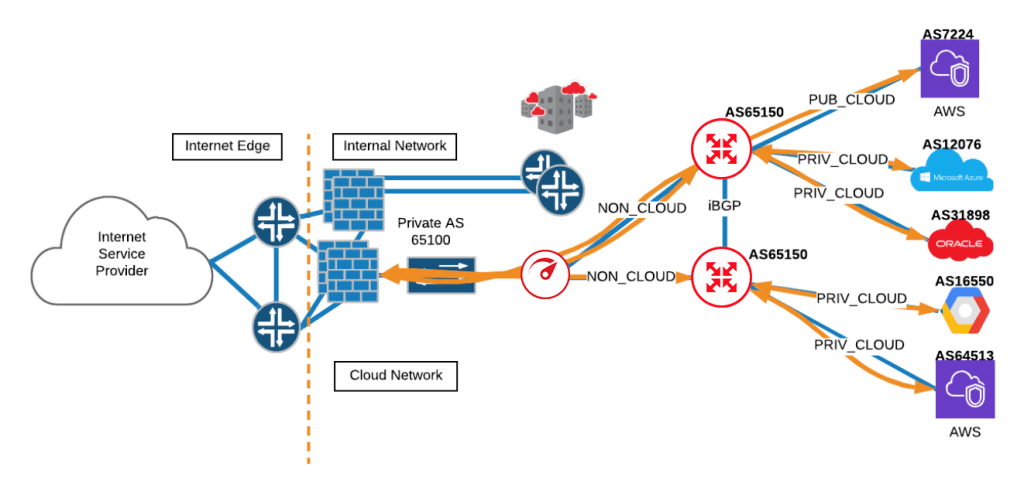

Also as part of the Design it will also be decided which Service Provider to use for Internet and WAN links. It will be decided which service offering will be used from the SP Vendor. If the application and system contain Public Cloud use (including Hybrid On-Prem) than it will be decided which specific connectivity mechanism and location the cloud will connect to. Will it be IPSec over Internet or over Direct Connect and where and how. Will it be the biggest MPLS VPN provider on the market or the smaller one. Will it be the biggest BGP Internet Transit provider or the smaller one.

Once the requirements are known; Once the flows are knows ; Once protocols and architecture is known ; Once the device vendors and device type and SP offerings are known and once all of these are selected than comes the implementation phase.

Engineering is a broad term which can encompass all of the above and more but as things stand here we can say that a Network Engineer as part of the engineering phase will configure and deploy the devices, configure and deploy the WAN links, configure and deploy the Internet links, configure and deploy the cloud connectivity VPNs and configure and deploy the interconnections in the network. This network engineering implementation effort is after the Requirements/Flows/Arch/Design phase as its an effort on ground and on site to implement the network and make things run. Up until this phase all the previous phases were on paper and this one is on ground practical work.

The previous Requirements/Flow/Protocols Architecture/Design and even initial aspects of the engineering phase can be done in office in meeting rooms. Initial aspects of engineering phase consisting of configurations and parameters to be used can be also decided before going out in the field. Once on ground and on site implementation starts than this is an effort of its own and can be considered as Project Deployment and Project Implementation. It entails device delivery, WAN link delivery, device power on, WAN link testing, Internet Link testing, Cloud VPN delivery, configurations and testing etc. This is a phase of its own and is an effort which is more akin to technical project management as well as it is more of an on ground project coordination and project management effort too. This is because of its physical, geographical and on site implementation aspects.

Depending on the type of project the implementation phase can consist of outage windows and maintenance windows and a lot of coordination to implement the new devices and new links.

Hence we can say that a networking project consists of separate requirements gathering, flows analysis, architecture, design and implementation phases. This means that a networking project can be divided into smaller multiple projects each consisting of these above phases. Each phase also requires a skill of its own. For example the Requirements, Flow Analysis, Architecture and Design phases are generally handled by Network Architects, Solution Architects and Network Design Engineers. The configuration and deployments aspect is handled more by Network Engineers and the Project implementation and coordination efforts are handled by Project Managers.

Multiple and simultaneously such large scale projects having all these phases going on at various levels would be run under a Program given the size of the organization is sufficiently large and that there are multiple streams of such projects being carried out.

I hope you enjoyed the good read.

Happy networking.

Habib

Information is present in computing platforms in two forms.

– Bits that are stored
– Bits that are traveling and transitioning

Securing bits that are stored and bits that are traveling and transitioning is a task.

These two forms present their own challenges but the bits that are traveling and transitioning i.e. changing forms within the computing platforms have acquired special attention. This is due to the prevalent pervasive communications using information technology computing platforms within society and businesses. When bits transition and travel they are also stored and retrieved from storage so securing both is important.

The only mystery surrounding the field of security is the presence of the all so many interaction surfaces between hardware layers and software layers through which transitions and traveling of bits occurs. From seeing text on the screen with ones eyes to thinking and considering it to thereafter editing it via hands there exists industries working within the human body which occur without us contemplating over them. There are interaction surfaces with the body as well. With muscular, neural, skeletol, etc working together to name a few.

Within computing platforms as the bits transition back and forth within one component i.e. one isolated CPU, RAM, HardDisk, Operating System and Application Software they present their own security challenge. When instead of isolation the bits travel between 2 such computing systems they present a different set of challenges. When there exists industrial scale, constant, consistent, ongoing back and forth travel and transitioning within milliseconds over large geographies between hundreds and thousands of components of various types it presents a completely different set of challenges.

Interaction surfaces are where bits change hands between subsystems. For example bits changing hands between the operating system and an application running on it or bits changing hands between one PC and another PC over a network. Interaction surface is when one subsystems surface interacts with another subsystems surface within the larger system and bits run. As the field of information technology and computing has evolved and progressed the number and types of subsystems, their surfaces and their interactions has increased a lot. So much so that securing them has become complicated. Wholesome security is therefore achieved when every time bits change hands i.e. transition and travel the interaction is secure. It is secure in the form that the storage at each end of change of hands is secure and the medium of exchange is secure.

Now it is simple to state in general english that when one subsystem interacts with another subsystem and bits change hands the storage points at each end and the medium used for the interaction and travel should be secure. Given timescale and geographical scale when it comes to reality the shear number and types of subsystems, the number and types of storage locations and the number and types of exchange mediums is so large that encompassing all of them becomes difficult.

Another incision into the security domain is cut deep into the system when the human computer interaction surface appears at various locations and in various forms. This increases the complexity of the whole security domain. Bit to Human interaction surface also needs to be kept secure at each interaction, at each geographical location and every time.

Furthermore another aspect is when one secure system under the ownership of one entity interacts with another system owned by another entity. This is therefore a time when bits are changing hands amongst different owners of them. The time and location of such an interaction surface presented between two separate ownerships also increases complexity. As your bits are stored under the ownership of another entity and accessed and retrieved by other people a whole system of management is required for such inter-ownership bit storage and bit travel interaction surfaces.

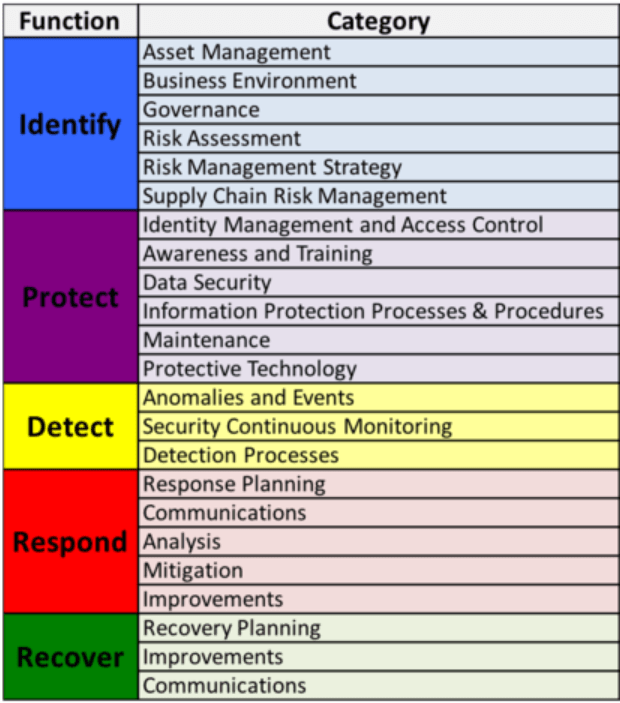

I guess a chart showing the whole variety of interaction surfaces within computing would demystify security. The reason for this is that each entry in the chart i.e. each interaction surface would be simply mapped to the precaution and action required for securing it. Each type of interaction surface would require a security precaution and actionable item within the security framework.

Be it an interaction surface where bits are:
– stored in hardware
– being processed by one set of software
– within one computer
– on a server
– in an application
– traveling over a network
– interacting with humans
– being exchanged between different humans
– being exchanged between different entities

Providing Layer 2 VPN and Layer 3 VPN services has been a requirement of enterprises from Service Providers. Similarly Data Center networks need to provide Layer 2/3 Overlay facility to applications being hosted.

EVPN is a new control plane protocol to achieve the above . This means it coordinates the distribution of IP and MAC addresses of endpoints over another network. This means it is has its own protocol messages to provide endpoint network addresses distribution mechanism. In the Data Plane traffic will be switched via MPLS Labels next hop lookups or IP next hop lookups.

To provide for a new control plane with new protocol messages providing new features BGP has been used. So it is BGP Update messages which are used as the carrier for EVPN messages. BGP connectivity is first established and messages are exchanged. The messages exchanged will be using BGP and in them EVPN specific information will be exchanged.

The Physical layer topology can be a leaf spine DC Clos fabric of a simple Distribution/Core setup. The links between the nodes will be Ethernet links.

One aspect of EVPN is that the terms Underlay and Overlay are now used. Underlay represent the underlying protocols on top of which EVPN runs. These are the IGP (OSPF,ISIS or BGP), and MPLS (LDP/SR).  The underlay also includes the Physical Clos or Core/Distribution topology which has high redundancy built into it using fabric links and LACP/LAGs. The Overlay is the BGP EVPN vitual topology itself which uses the underly network to build a virtual network on top. It is the part of the network which related to providing tenant or vpn endpoints reachability. i.e. MAC address or VPN IP distribution.

It’s a new protocol and if you look at the previous protocols there is little mechanism to provide all active multihoming capability. This refers to one CE being connected via two links to two PEs and both links being active and providing traffic path to far end via ECMP and Multipathing. 2 Chassis multichassis lag has been one option for but it is proprietary per vendor and causes particular virtual chassis link requirement limits. Ingress PE to multiple egress PE per flow based load balancing using BGP multipathing is also newly enabled by EVPN.

There is also little mechanism in previous generation protocols to provide efficient fabric bandwidth utilization for tenant/private networks over meshed-style links. Previous protocols provide single active and single paths and required LDP sessions and tunnels for full mesh over a fabric. MAC learning in BGP over underlay provides this in EVPN.

Similarly there is no mechanism to provide workload (VM) placement flexibility and mobility across a fabric. EVPN provides this via Distributed Anycast Gateway.



I attended the Amazon Network Development Engineer tech talk held in Sydney yesterday. While fishing for future Network Development Engineers Amazon gave a short presentation on their network from a DC and DCI/WAN perspective.

It was a good talk and the interaction with the Network Development Engineers afterwards was insightful. A lot of their work is circling around Automation and Scripting. This is also obvious from the Job title and the Job Descriptions for the role advertisements.
